In the naval and marine sector, radio communications and RF systems must operate under particularly complex conditions. The presence of large metal structures, exposure to corrosive environments, vibrations, platform movement and variable weather conditions can significantly affect antenna behaviour.
In these contexts, the antenna should not be considered a simple component to be installed on board. It is part of the RF architecture and can contribute to link continuity, radio coverage, communication reliability and consistency between equipment, platform and operational scenario.
ElettroMagnetic Services Srl designs and manufactures custom naval antennas and tailor-made antenna systems for marine applications, defense, security, unmanned platforms, ship-to-shore, ship-to-drone and ship-to-satellite communications, and RF systems installed in marine environments.
We do not supply complete naval systems, nor do we develop active electronics, radios, modems, communication equipment or integrated unmanned platforms. Our contribution concerns the antenna part: design, optimisation, manufacturing and characterisation of custom antennas and antenna systems intended to be connected to the Customer’s RF equipment.
The objective is to help the Customer develop an antenna solution that is consistent with the RF architecture, the naval platform and the expected operating conditions.
Custom naval antennas and antennas for marine applications must therefore be developed by considering, from the very beginning, the real platform, the installation point, the operating frequencies, exposure to the marine environment, the presence of metal structures and the coverage objectives of the RF system.

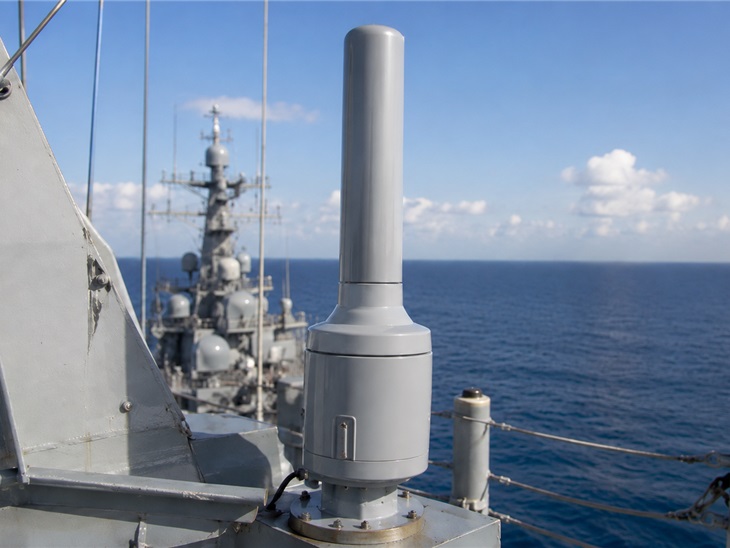

Custom antennas for naval and marine applications
In the naval environment, a datasheet does not always describe how the antenna will behave in the actual conditions of use.
A standard antenna may show adequate performance under controlled test conditions, but behave differently when installed on a ship, a technical vessel, an offshore platform, a buoy, an unmanned surface vehicle, a coastal station or a port structure.
The point is not only choosing an antenna compatible with the required electrical specifications. The real issue is understanding whether that solution can maintain RF behaviour that is consistent with the platform, the installation point and the expected environmental conditions.
A custom design makes it possible to address these aspects from the earliest stages of the project, reducing the risk that the antenna part becomes a criticality only during final integration or operational tests.
Why the naval environment is critical for antennas
The naval sector presents conditions that are very different from a standard land installation.
The platform can modify antenna behaviour through large metal surfaces, superstructures, masts, railings, radomes, cabling, other RF equipment and mounting constraints. In addition to these aspects, there are salt mist, humidity, corrosion, vibrations, water, wind and severe weather conditions.
Under these conditions, a standard solution may not maintain the same performance stability shown in the laboratory or under ideal conditions.
The advantage of a custom naval antenna is the possibility of designing the solution by taking into account the real installation context, instead of adapting a generic component afterwards to a platform that requires a specific evaluation.
Naval antennas for radio communications, data links, GNSS and SATCOM
Naval applications may require very different radio links: ship-to-shore communications, links between naval units, data links, telemetry, GNSS, AIS, Wi-Fi, LTE/5G, VHF, UHF, SATCOM or communications with unmanned platforms.
Antennas for naval communications, naval SATCOM antennas, naval GNSS antennas and naval AIS antennas must be evaluated in relation to the real configuration of the platform, because installation position, superstructures, masts, radomes, cabling and other antennas can modify coverage, isolation and link continuity.
In any case, the antenna must be designed by considering the real configuration of the platform. Naval communication can be penalised not only by the radio equipment, but also by an unfavourable installation position, by a metal structure that alters antenna behaviour or by the presence of other RF systems on board.
When multiple antennas and several RF functions must coexist on the same structure, the issue is not only designing a single good antenna. It is developing an antenna solution that is consistent with the context in which it will have to operate, reducing the risk of critical interactions during the final integration phase.
Naval multi-antenna systems must therefore be evaluated by considering distance between antennas, operating bands, power levels, isolation, radiation patterns and interaction with the platform, in order to reduce the risk of unwanted coupling or degradation of RF performance.
Designing a custom solution means developing an antenna or antenna system that is more consistent with the platform, the required RF function and the real operating conditions.
In antennas for ship-to-shore communications and ship-to-satellite antennas, RF behaviour must be evaluated by considering coverage, orientation, installation height, obstacles on board, platform movement and the continuity required by the service.
Antennas for unmanned naval platforms, USVs and autonomous marine applications
The naval sector is evolving towards the use of unmanned platforms, USVs, autonomous units, smart buoys and marine systems intended for surveillance, monitoring, security, inspection, infrastructure protection and defense applications.
Antennas for USVs and antennas for unmanned naval platforms must be designed by considering limited spaces, weight, materials, the presence of sensors and payloads, platform movement, exposure to water and the need to maintain reliable links with a mothership, coastal station or remote infrastructures.
In these cases, the antenna solution must be designed by considering the real platform and the function it will have to support. A control link, a data link, communication with support units or GNSS reception may have different requirements, but they share the need for reliable RF behaviour in the expected operational context.
ElettroMagnetic Services Srl develops custom antennas and antenna systems for unmanned naval platforms and autonomous marine applications, with the objective of contributing to link continuity and RF consistency on the platform.
Antennas for ROVs and marine applications subject to immersion
ROV platforms and some marine applications introduce particularly severe constraints.
In these applications, the critical issue does not concern only the radio link, but also the antenna’s ability to maintain its performance after exposure to the marine environment. Immersion, pressure, salt mist, humidity, corrosion and mechanical stresses can compromise sealing, materials, connections and the RF behaviour of the solution.
For this reason, antenna design for ROVs and marine applications must consider mechanical protection, environmental sealing and RF performance together. The objective is to develop an antenna solution capable of withstanding the expected immersion conditions and operating correctly when RF communication becomes necessary again.
ElettroMagnetic Services Srl designs custom antennas and antenna systems for unmanned marine platforms, buoys, naval vessels, support units and ROV applications in which the RF solution must be consistent with the real operating environment.
Antennas for naval defense, security and C-UAS applications
Naval platforms are increasingly involved in defense, security, coastal surveillance, port protection, critical infrastructure protection and counter-drone system architectures.
In these scenarios, the antenna may be involved in different functions: communication, data links, RF detection, passive spectrum monitoring, direction finding, links with drones, C-UAS equipment and unmanned platforms.
The critical issue is not only choosing an antenna compatible with the required function. The point is understanding how that solution will behave once installed on the real naval platform, often in the presence of several RF systems and metal structures that can modify coverage, directivity, isolation and link continuity.
Evaluating the antenna from the earliest stages of the project reduces the risk of RF criticalities in the advanced stages of integration, especially when the platform has to operate in complex or mission-critical scenarios.
Rugged antennas for marine environments
A naval antenna must be designed not only to operate from an RF point of view, but also to withstand the conditions of the marine environment over time.
Salt mist, humidity, corrosion, vibrations, water, wind and mechanical stresses can affect the reliability of the solution, especially when the antenna is installed in an exposed position or on operational platforms subject to severe conditions.
Rugged marine antennas must maintain consistent RF performance even in the presence of prolonged environmental exposure, vibrations, mechanical stresses, humidity, salt mist and installation constraints typical of naval platforms.
For this reason, in the development of custom antennas for naval applications, RF performance, mechanical robustness and environmental protection must be considered together.
The advantage is having a solution designed for real use, not only to meet a nominal specification under controlled conditions.
Integrated antennas, radomes and installation constraints
In many naval applications, the antenna must comply with constraints related to space, dimensions, mechanical robustness and integration into the geometry of the platform.
This may require the design of antennas integrated into radomes, low-profile antennas, multiband solutions, directional or omnidirectional antennas, or multi-antenna systems developed to adapt to the available configuration.
Antenna integration on naval platforms therefore requires a combined evaluation of dimensions, materials, radomes, fixings, cabling, mounting point and RF behaviour, preventing the mechanical constraint from being addressed separately from radio performance.
The advantage is not only mechanical. Correct antenna design on the platform makes it possible to better control RF behaviour, reduce installation criticalities and improve consistency between expected performance and real performance.
For applications on ships, technical vessels, marine platforms, USVs, buoys, coastal stations or port infrastructures, the antenna should be evaluated from the earliest stages of definition of the RF architecture and platform, when position, dimensions, radomes, cabling and coexistence with other RF systems can still be optimised.
From the operational requirement to the antenna solution
Every naval project starts from the analysis of the application scenario.
ElettroMagnetic Services Srl evaluates together with the Customer the installation platform, the RF function to be supported, the available position for the antenna, the mechanical constraints, the environmental conditions, the presence of other antennas and the coverage or link objectives.
From this analysis, a tailor-made antenna solution is developed through electromagnetic simulation, prototyping, measurements and characterisation in an anechoic chamber.
This process makes it possible to transform the constraints of the naval platform into design criteria, reducing the uncertainty between expected performance and real behaviour.
The advantage for the Customer
Involving ElettroMagnetic Services Srl in the design of custom naval antennas means addressing the RF part related to the antenna while design choices are still open.
This makes it possible to avoid standard antennas that are not optimised for the real platform, reduce the risk of criticalities in the advanced stages of integration and develop an antenna solution that is consistent with the RF architecture, the naval vessel and the expected operating conditions.
It also means being able to verify the behaviour of the antenna or antenna system through measurements and characterisation in an anechoic chamber before delivery.
In the naval sector, the antenna is not a secondary component. It should be evaluated from the earliest stages of definition of the RF architecture and installation platform, when position, dimensions, radomes, cabling and coexistence with other RF systems can still be optimised.
Custom antennas for your naval project
If you are developing a naval platform, an RF system for marine environments, a ship-to-shore, ship-to-drone or ship-to-satellite communication solution, a USV, ROV or unmanned platform, a port security system, a naval C-UAS application or a marine monitoring solution, ElettroMagnetic Services Srl can support you in designing the custom naval antenna best suited to your operational scenario.
Tell us about your project: platform, RF function to be supported, available position for the antenna, installation constraints, environmental conditions, coexistence with other RF systems and expected performance are the starting point for designing an antenna solution that is truly consistent with your naval application.
