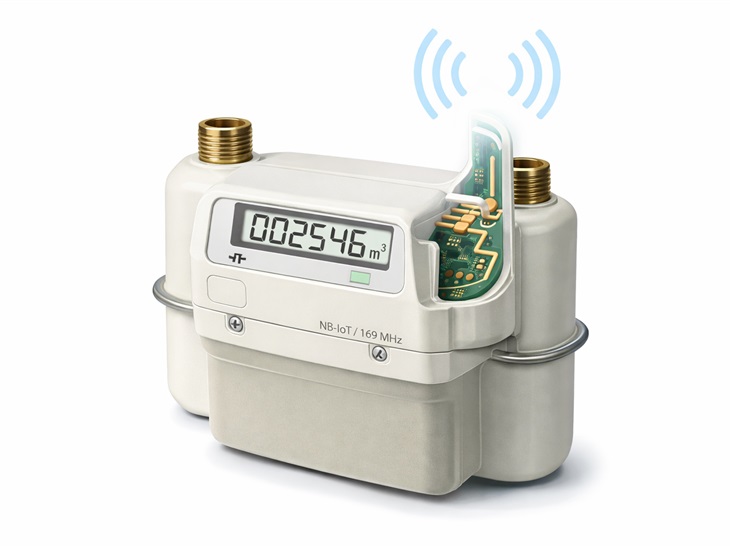

Modern smart water and gas meters increasingly integrate radio communication systems such as NB-IoT, Wireless M-Bus at 169 MHz, LoRaWAN, or LTE-M.
In these devices, the antenna is not an accessory component but a fundamental part of the communication system and must be designed together with the electronics and the meter enclosure.
Unlike other RF devices, smart meters are installed in particularly critical electromagnetic environments, such as underground pits, metal cabinets, basements, technical rooms, humid environments, and very limited spaces. Under these conditions, the use of standard antennas rarely allows reliable and repeatable radio performance to be achieved.
For this reason, in next-generation smart meters the antenna is increasingly developed as an integrated solution, optimized according to the device, the enclosure, the battery, the electronic board, and the real installation conditions.
Radio Technologies Used in Smart Water and Gas Meters
Smart water and gas meters use several radio technologies, including:
- NB-IoT
- LTE-M
- Wireless M-Bus 169 MHz
- Wireless M-Bus 868 MHz
- LoRaWAN
- Bluetooth for local configuration
Often, multiple radio technologies are integrated into the same device, making it necessary to design multi-band antennas or multiple integrated antennas within the same enclosure, with particularly stringent requirements in terms of isolation and efficiency.
RF Integration Challenges in Smart Meters
The antenna design for a smart meter involves several technical challenges:
- installation in underground pits
- installation inside metal cabinets or enclosures
- presence of water in the immediate vicinity of the antenna
- very small plastic enclosures
- limited ground plane
- presence of large batteries
- ultra-low power operation
- need for high antenna efficiency
- integration of multiple radio systems within the same device
- uncontrolled meter orientation after installation
Under these conditions, the antenna must be designed as an integral part of the device and cannot be considered a standard component to be added at the end of the project.
When a Custom Integrated Antenna Is Required
The design of a custom antenna for smart meters is generally required when:
- the meter integrates NB-IoT or LTE-M
- Wireless M-Bus communication at 169 MHz is used
- the device is installed in underground pits or metal cabinets
- the available space for the antenna is very limited
- the device is battery-powered and requires high efficiency
- multiple antennas are present within the same device
- the antenna must be integrated into the plastic enclosure
- radio performance is critical for remote meter reading
- reliable communication must be ensured in difficult environments
Our Approach to Antenna Design for Smart Meters
For over 25 years, we have been designing professional custom antennas and developing integrated antennas as part of the device, working directly on the electronics, the enclosure, and the real installation conditions.
The development of the integrated antenna generally includes:
- analysis of radio requirements and frequency bands
- enclosure and material evaluation
- electromagnetic simulations
- integrated antenna design
- prototype manufacturing
- optimization on the real device
- measurements in an anechoic chamber
- performance verification under real installation conditions
The objective is not to design a generic antenna, but to develop the antenna system optimized for the specific meter.
In modern smart meters, the antenna represents the interface between the device and the communication network.
If the antenna is not properly designed for the device and for the installation environment, the entire remote metering system may become unreliable.
For this reason, more and more smart meter manufacturers are choosing to develop custom integrated antennas specifically designed for their own devices.
If you are developing a smart meter with NB-IoT, Wireless M-Bus, or LoRaWAN communication and would like to evaluate the development of an integrated antenna, we will be pleased to support you in the design and optimization of the antenna system.
